Product Details

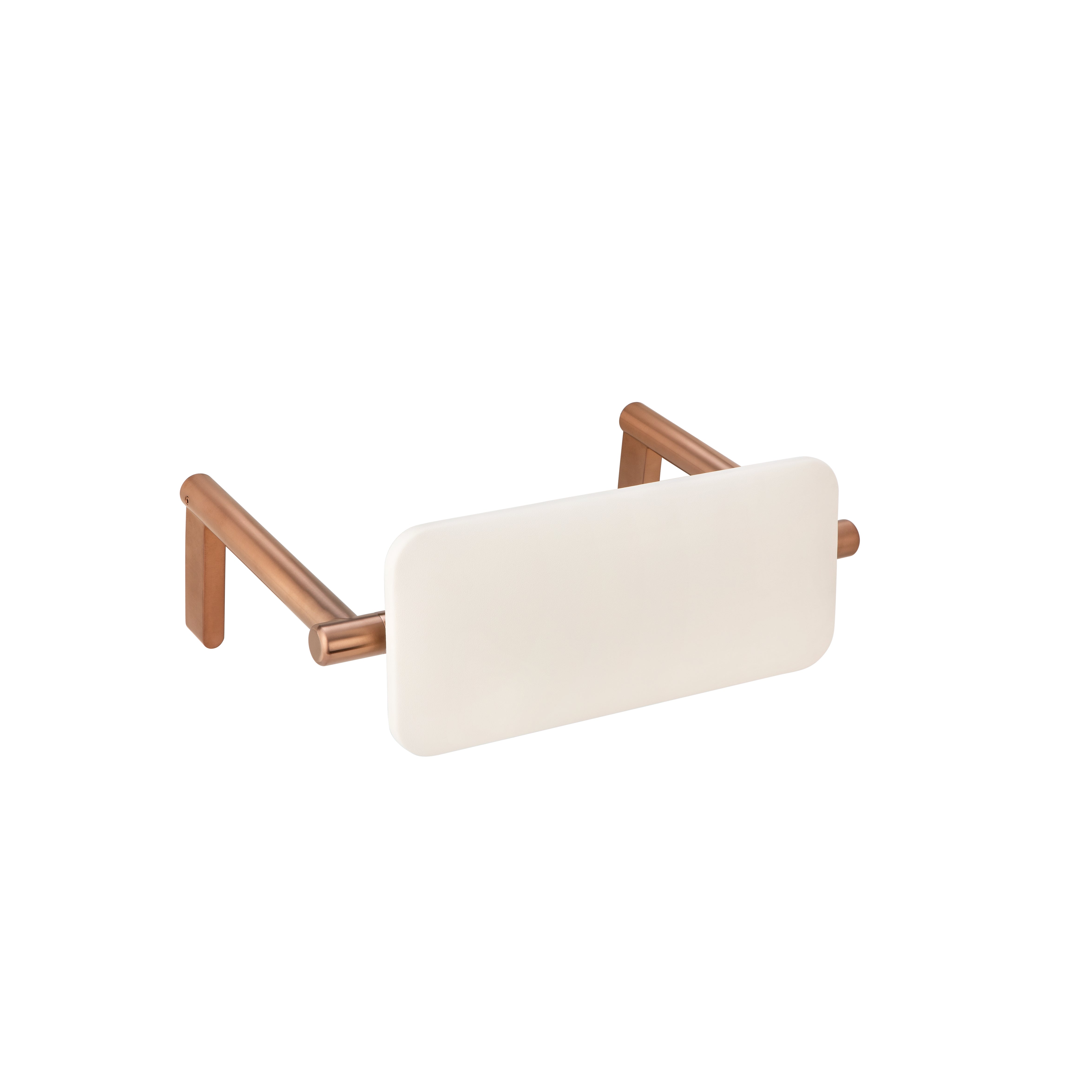

Our wall-mounted Aliro Accessible Backrest has been specifically designed to be compatible with the Aliro Back-to-Wall Toilet Suite. It has a highly durable, anti-corrosive 316 stainless steel rail and an ethylene vinyl acetate pillow.
Please Note:
– Our Aliro Accessible Back Rest is designed and tested to meet AS1428.1:2021 Standards. It is the responsibility of the purchaser to consult a professional prior to installation to ensure the products are installed in a manner that maintains their compliance with the relevant Standards and meets all applicable regulatory requirements. ABI Interiors accepts no liability for any non-compliance with the Standards that occurs as a result of installation that is not in accordance with ABI’s installation guidelines or the Standards, or any failure to meet any regulatory requirements.
Features:
– Highly durable 316 stainless steel construction offers superior anti-corrosive properties that include chloride resistance.
– Wall-mounted backrest ensures extra resilience and support.
– Independently strength tested* and approved to ensure compliance with the AS1428.1:2021
Dimensions:
Backrest
– Length: 493mm
– Projection: 370mm
Pillow
– Height: 176mm
– Width: 400mm
*All of ABI Interiors’ Australian Standard compliance testing is performed through the National Association of Testing Authorities (NATA).
Shop Other Colour Options
Shop Other Colour Options
Product Info
Accessible
316 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
| SKU | 15312 |
| Weight | 4.6kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Copper - ABI's Heat Shield - Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel Ethylene Vinyl Acetate (EVA) - Pillow |
| Dimensions (mm) | Backrest Length: 493mm Projection: 370mm Pillow Height: 176mm Width: 400mm |
| What's In The Box | 2 x Fixing Bracket 4 x Washer 4 x 14g x 75mm Timber Screw - Type 17 1 x Right Hand Side Bracket 1 x Connection Rail 1 x Fixing Plate 1 x Pillow 1 x Left Hand Side Bracket 3 x ST4.8 x 55mm Bolt 4 x M8 x 8mm Grub screw 1 x 4mm Metric Allen key 2 x M5 x 6mm Grub screw 1 x 2.5mm Metric Allen key |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Aliro Accessible Backrest - Brushed Copper | 15312 | 25 | 5 | - | 2 | 5 | 1 | - | 1 | 25 | 1 | - | 1 |
Product Documents
| Aliro Accessible Backrest - Specification |  |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Product FAQs
Can the Aliro Accessible Backrest be paired with any toilet?
No, the Aliro Accessible Backrest has been specifically designed to be paired with the Aliro Back to Wall Toilet Suite.
