T43732(v)| WELS: 5 Star | Litres / min: 6
Product Details
Infiniti Technology is all about interchangeable tapware. It has been specifically manufactured to provide the option to have your finish and handle style changed after installation without compromising your existing waterproofing or tiling.
Enabling superb versatility, the Elysian Minimal uses innovative ceramic cartridge technology. The mixer’s smooth, sophisticated design incorporates precise temperature and pressure control that’ll help enhance the functionality of your bathroom space.
Includes:
– In-Wall Body & Handle Kit
– Wall Mounted Spout
Features:
– Precise Temperature Control
– Precise Pressure Control
– PSLT (PrimeShield Lacquer Technology)
A Flow Valve Insert – Non-Restricting is available to be installed inside our Spouts (26 L/M at 500KPA).
Browse our complete range of white taps.
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PSLT (PrimeShield Lacquer Technology)
Ceramic Cartridge Technology
| SKU | 14278 |
| Weight | 1.37kg |
| Brand | ABI Interiors |
| Finish/Coating | White - Semi-Gloss PrimeShield Lacquer Technology |
| Construction | Solid Brass |
| Spout Dimensions (mm) | Reach: 200mm Backplate Diameter: 60mm |

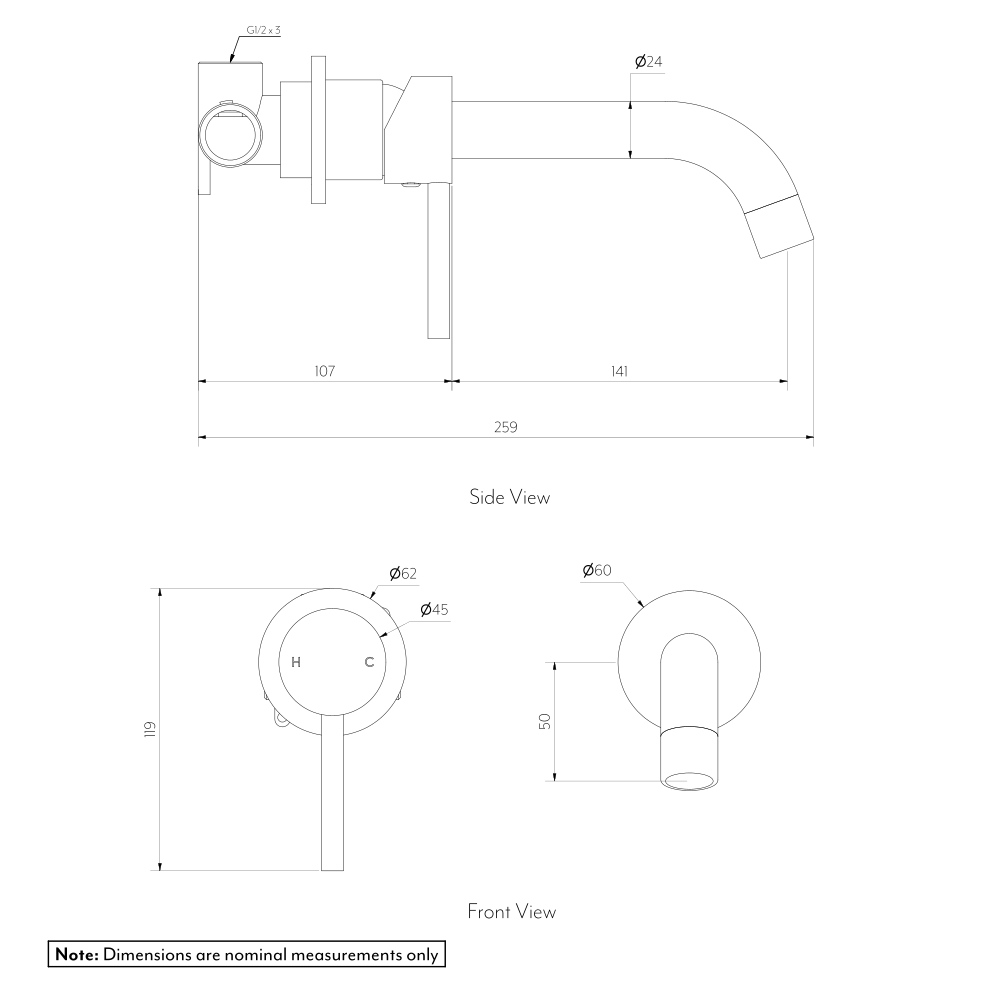

| Mixer Dimensions (mm) | Handle Height: 110mm Backplate Diameter: 62mm |
| What's In The Box | In-Wall Kit (required for rough-in): Body + Fixing Screws Locking Nut Cartridge Handle Kit (required for fit-off): 1 x Short Sleeve (15mm) 1 x Long Sleeve (30mm) 1 x Dome 1 x Backplate 1 x Handle 1 x Allen Key Wall Mounted Spout (required for fit-off): 1 x Backplate 1 x Spout |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Elysian Minimal Mixer & Spout Set - White | 14278 | 25 | 2 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
5
Water Rating
6
Litres Per Minute
T43732(v)
Registration Number
litres
per minute
Product Documents
| Elysian Minimal Mixer & Spout Set - Specification |  |
| Pipe installation | |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Product FAQs
Can I swap out my handle design or finish after installation if I change my mind without compromising my tiles or damaging the waterproofing?
Yes, our Infiniti Technology allows the flexibility and the convenience to have your handles swapped out after installation of the rough-in without damaging waterproofing or tiling.
How do I determine which sleeve length is appropriate for my fitting?
The sleeve length you select for your in-wall component is determined by the depth and thickness of your wall.
What parts are included with my purchase?
You will receive the following:
In-Wall Kit (required for rough-in):
Body + Fixing Screws
Locking Nut
Cartridge
Handle Kit (required for fit-off):
1 x Short Sleeve (15mm)
1 x Long Sleeve (30mm)
1 x Dome
1 x Backplate
1 x Handle
1 x Allen Key
Wall Mounted Spout (required for fit-off):
1 x Backplate
1 x Spout
