Product Details
Sometimes, you want the freedom to retain your existing door and replace the handle without creating new fixing holes. Our Modi Adjustable Entry Door Pull & Lock Set helps refresh the look of your existing external entry door. It has fully adjustable fixing collars to align with existing fixing points or to customise to specific requirements.

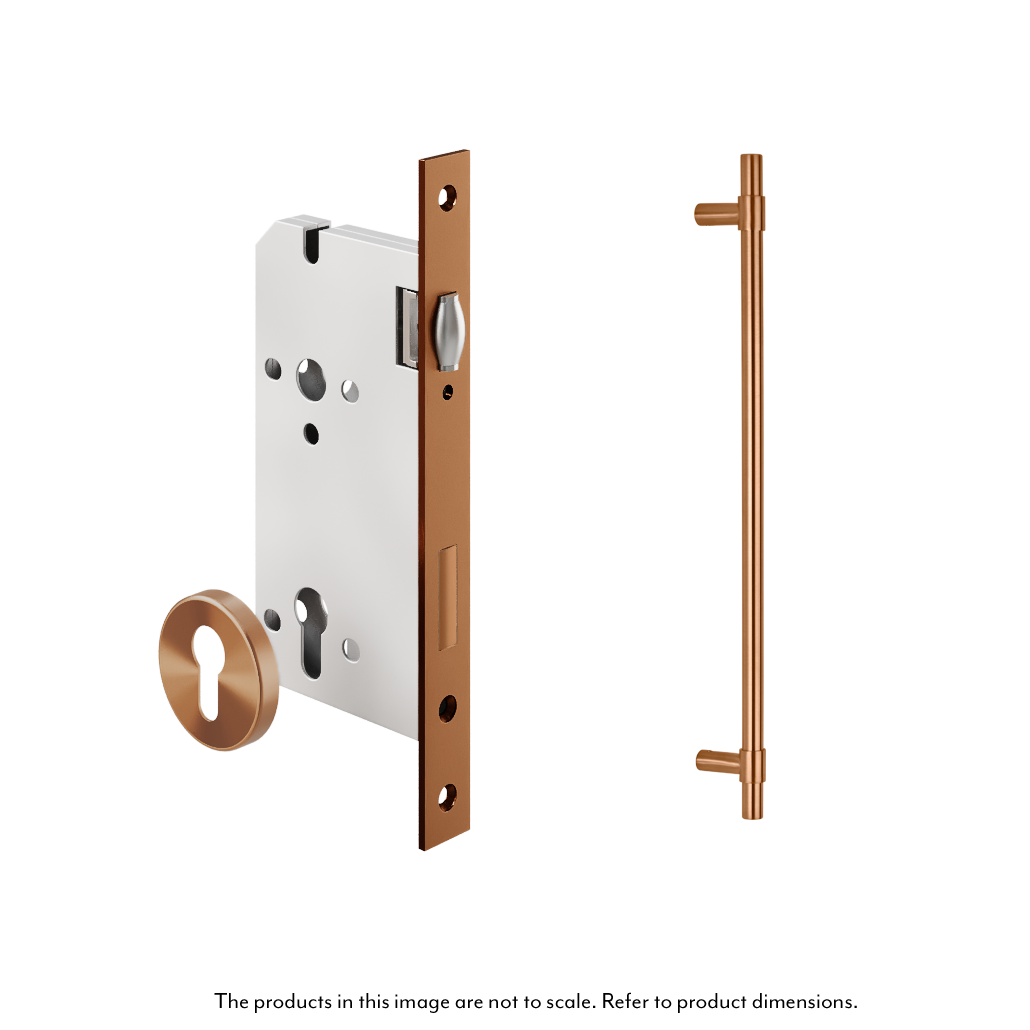

The Modi Adjustable Entry Door Pull & Lock Set combines a Modi Adjustable Entry Pull 600mm with a Roller Mortice Lock — giving you a complete Entry Door Pull and Lock Set.
The Roller Mortice Lock allows for easy latching and secure locking. It features a roller mechanism that can be conveniently adjusted from the front of the plate after installation. It has adjustable tabs to perfect the angle of the striker plate for optimal door closing and includes both a left and right strike plate to suit any installation.
The Roller Mortice Lock is compatible with our Euro Double Cylinder and Euro Single Cylinder, allowing it to be easily interchanged to accommodate your needs. It is suitable for both retrofitting and new installations.
Please Note:
– The Roller Mortice Lock requires a Euro Cylinder to function. This component is sold separately.
– This is a multipurpose product for both internal and external doors.
– The Roller Mortice Lock has been rigorously tested to meet Australian Standards (AS 4145.2-2008) and achieves the highest rating for durability (D8, 500 000 cycles), with corrosion resistance and security ratings (C7, S7).
– This set includes one singular Door Pull. If you would like to purchase an additional single pull you can do so here.
Features:
– Highly durable 316 stainless steel construction with anti-corrosive properties
– Fully adjustable fixing collars
– Single or double-sided installation
– Anti-fingerprint coating
Dimensions:
– Height: 600mm
– Width: 20mm
Browse our complete range of brushed copper door handles.
Shop Other Colour Options
Shop Other Colour Options
Product Info
316 Stainless Steel
Anti-Corrosion
Ease of Installation
| SKU | 16262 |
| Weight | 1.661kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Copper - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | 316 Stainless Steel |
| Dimensions (mm) | Entry Door Pull: Height: 600mm Width: 20mm Roller Mortice Lock: Height: 240mm Width: 24mm Depth: 90mm |
| What's In The Box | Box 1: 1 x Modi Adjustable Handle 600mm 2 x Collars 2 x M6 x 8 Grub Screws 2 x Fixing Screws 2 x V-slot Nuts 2 x M6 x 5 Grub Screws 2 x M8 x 100 Bolts 1 x 3mm Allen key Box 2: 1 x Roller catch / mortice lock 1 x Strike plate left 1 x Strike plate right 1 x Dust box 2 x Fixing screw 25mm 1 x Fixing screw 70mm 3 x Fixing screw 16mm 2 x Bracket 2 x Cover plate 2 x M4 x 60mm Snap-off bolt 2 x M4 Hex Nuts 4 x Fixing screw 20mm |
| ETA | |
| Australian Standards | Roller Mortice Lock: Meets AS 4145.2-2008 Durability: D8, 500 000 Cycles Corrosion Resistance: C7 Security Rating: S7 |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Roller Mortice Lock - 60mm Backset - Brushed Copper | 16290 | 25 | 5 | - | 2 | 5 | 1 | - | 1 | 10 | 2 | - | 1 |
| Modi Adjustable Entry Door Pull 300mm - Brushed Copper | 16246 | 25 | 5 | - | 2 | 5 | 1 | - | 1 | 10 | 2 | - | 1 |
Product Documents
| Modi Adjustable Entry Door Pull & Lock Set 600mm - Specification |  |
Bim Files
| View Library |  |
Product FAQs
What are the two fixing holes for?
These are adjustable fixing collars that can be positioned to align with existing fixing points or simply configured to personal preference upon installation.
Can the Modi Adjustable Entry Door Pull & Lock Set be installed double-sided?
Yes, the Modi Adjustable Entry Door Pull & Lock Set can be installed double-sided if two products are purchased.
Is the Modi Adjustable Entry Door Pull suitable for external use?
Yes, the Modi Adjustable Entry Door Pull & Lock Set is constructed from 316 Stainless Steel — a premium external material for outdoor use.
Is the Modi Adjustable Entry Door Pull & Lock Set compatible with other door types?
Yes, the Modi Adjustable Entry Door Pull & Lock Set is compatible with integrated appliances, french doors, barn doors, and sliding doors. Additionally, it can be installed on any timber framed door, and aluminium doors are still possible; however, these would require alternative fixing screws.
What is the maximum weight this product can hold?
We cannot provide weight ratings due to the various factors involved in fixing the handle. However, the handle/pull is strong enough to withstand heavy weights. Please note that it is important that the handles are fixed to a solid core or adequate structure to prevent the fixings from being pulled out.
Can I use this entry pull on my integrated appliances?
Yes, our entry pulls are suitable for installation on integrated appliances such as fridges, freezers, and dishwashers.
