Product Details
With a sharp and slimline design, the Pius Glass Panel Clip will instil confidence thanks to its hand-polished stainless steel construction.
Pius is designed for 12mm glass but can also be adjusted to work with 8 – 10mm glass. For glass panels less than 12mm thick, ABI Interiors recommends using clear rubber packers (which can be supplied by your local glazier). Generally, 3 – 4 clips are required per glass panel. However, this depends on the size and height of the glass panel.
Features:
– 304 stainless steel, a premium material that ensures durability for commercial and indoor use.

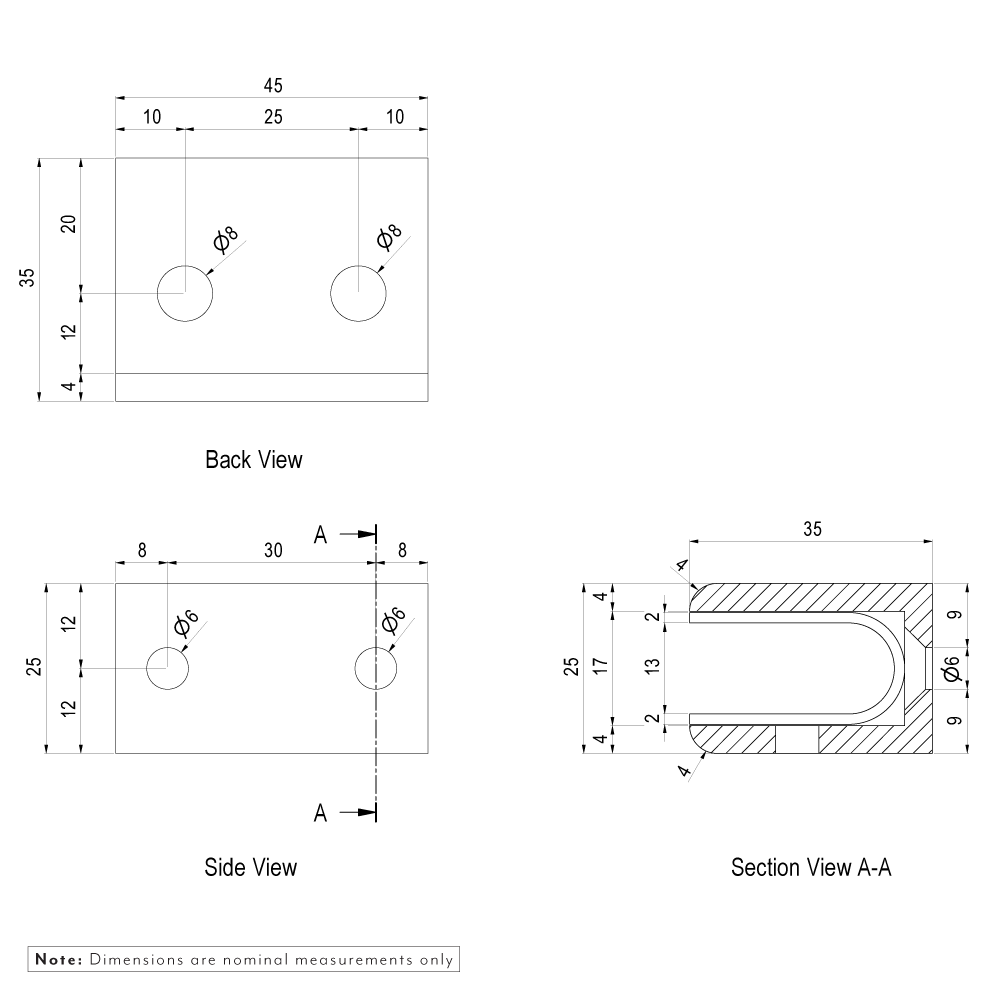

Dimensions:
– Length: 45mm
– Width: 25mm
– Height: 35mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
Ease of Installation
Ease of Cleaning
| SKU | 10787 |
| Weight | 0.14kg |
| Brand | ABI Interiors |
| Construction | 304 Stainless Steel |
| Dimensions (mm) | Length: 45mm Width: 25mm Height: 35mm |
| Application | Pius is designed for 12mm glass, but can be adjusted to work with 8-10mm. For glass panels less than 12mm thickness ABI recommends clear rubber packers to be used (which can be supplied by your local glazier). |
| What's In The Box | 1 x Glass Panel Clip |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Pius Glass Panel Clip - Stainless Steel | 10787 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Pius Glass Panel Clip 12mm - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
What type of coating is used on this product, is it durable?
ABI's Heat Shield – Industrial grade PVD electro colouring system - This is the most durable finish available on the market, the same process is used to strengthen the end of drill bits.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the glass clip would be fine.
Can the Pius Glass Panel Clip hold the glass panel weight?
The Pius Glass Panel Clip should not be the holding the weight of the glass. It's function is to support and/or stabilise the glass panels only.
Can our Pius Clips be floor-mounted as well as wall-mounted?
Yes, our Pius Clips can be both floor and wall-mounted. This product comes with fixing screws and plugs that are compatible with tiles and concrete.
