Product Details

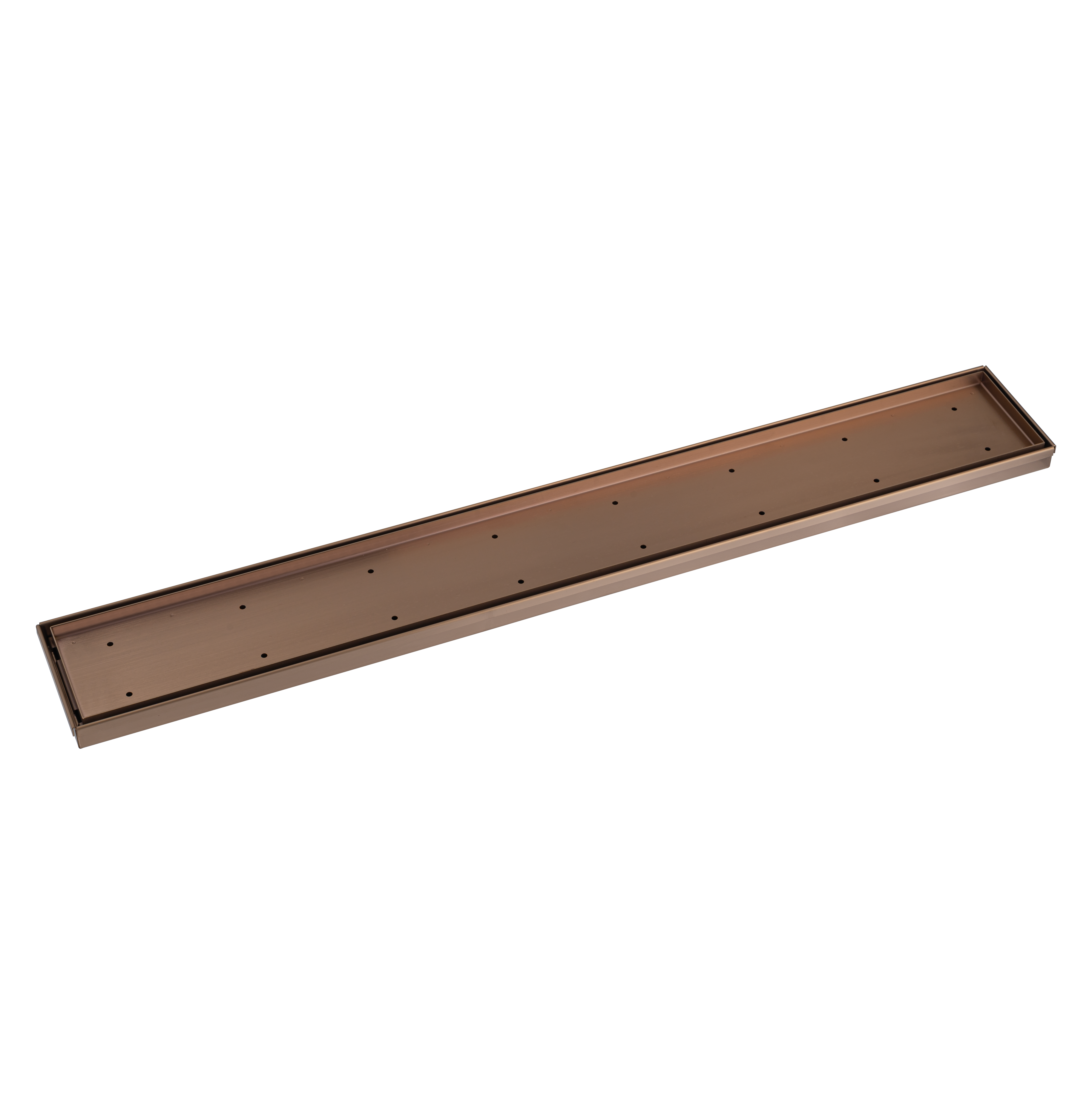

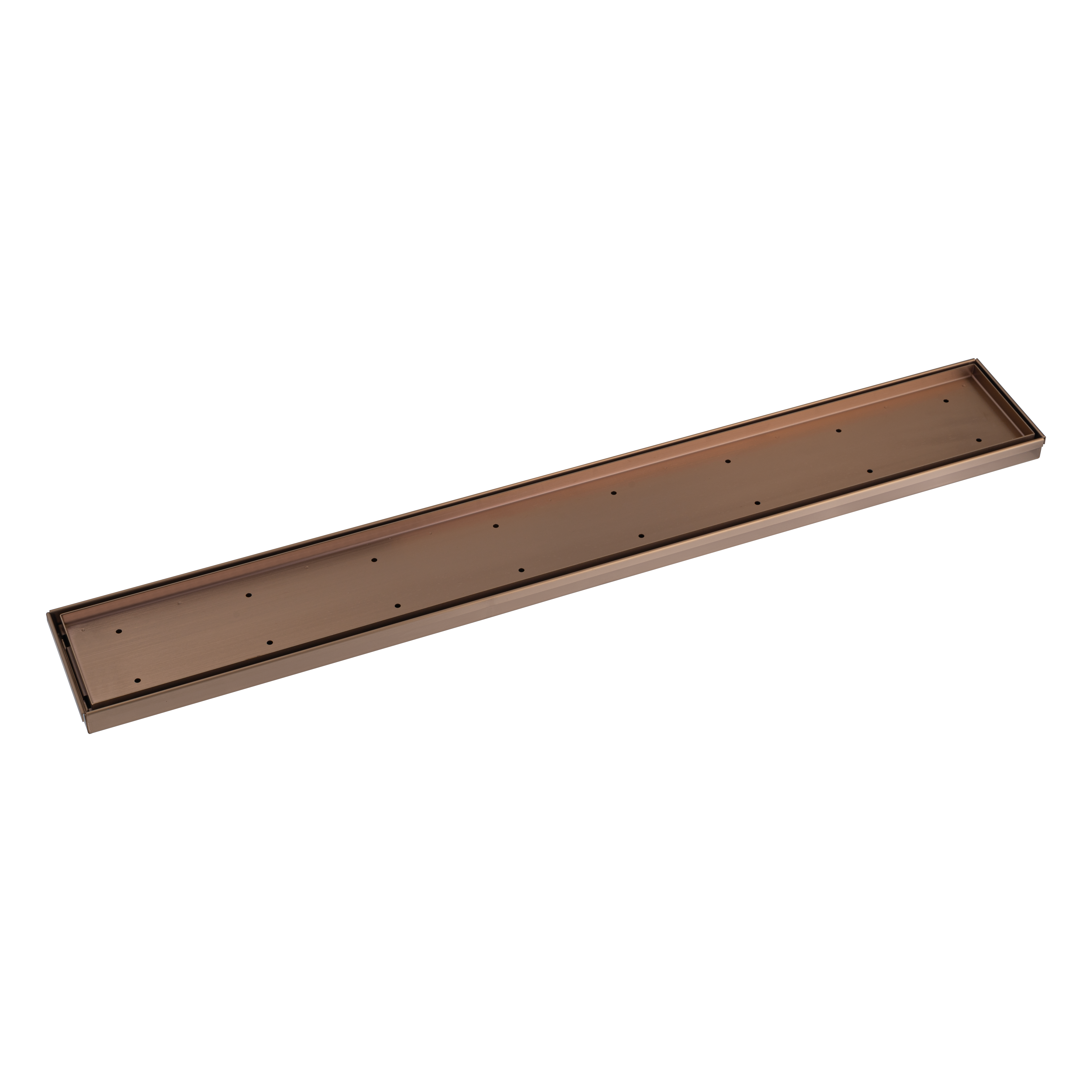

The Pixi Tile Insert Shower Channel Waste 900mm is a contemporary drainage fixture that seamlessly blends into your surrounding tiles for a discreet and effortless look.
Constructed from durable 304 stainless steel and coloured with our industrial-grade PVD electro colouring system, this tile floor waste provides functionality whilst adding an element of luxury to your flooring. It is conveniently available in brushed brass, brushed copper, brushed gunmetal, and stainless steel.
Please Note:
– The tile insert measures 15mm thick and is suitable for tiles between 10-12mm. However, this will vary depending on individual installation.
Features:
– 304 stainless steel construction offers durability for indoor and commercial use.
– Physical Vapour Deposition (PVD) coating to provide a more corrosion-resistant finish.
Dimensions:
– Length: 900mm
– Width: 125mm
– Height: 28mm
– Waste outlet diameter: 76mm
– Waste outlet height: 30mm
Browse our complete range of brushed copper shower wastes.
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Ease of Cleaning
| SKU | 10461 |
| Weight | 3.4kg |
| Brand | ABI Interiors |
| Finish/Coating | Brushed Copper - ABI's Heat Shield – Industrial grade PVD electro colouring system (Tile is inserted after installation leaving only the rims visible) |
| Construction | 304 Stainless Steel |
| Dimensions (mm) | Length: 900mm Width: 125mm Height: 28mm Waste Outlet Diameter: 76mm Waste Outlet Height: 30mm |
| What's In The Box | 1 x Shower Grate Top 1 x Shower Grate |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Pixi Tile Insert Shower Channel Waste 900mm - Brushed Copper | 10461 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Pixi Tile Insert Shower Channel Waste 900mm - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
What type of coating is used on this product, is it durable?
ABI's Heat Shield – Industrial grade PVD electro colouring system - This is the most durable finish available on the market, the same process is used to strengthen the end of drill bits.
Can this product be used externally?
We don’t currently have a warranty that covers external use however due to its stainless steel construction it would be our most suitable product for exterior use. The PVD coating would be more susceptible to damage however the structural integrity of the floor waste will be fine.
What tile thickness is suitable?
The Pixi Tile Insert Channel Waste is suitable for tiles between 10-12mm. However, this will vary depending on individual installation.
What's in the box?
1 x Shower Grate Top
1 x Shower Grate Base
