Product Details
Sometimes you want the freedom to retain your existing cabinetry and replace the handles without creating new fixing holes.

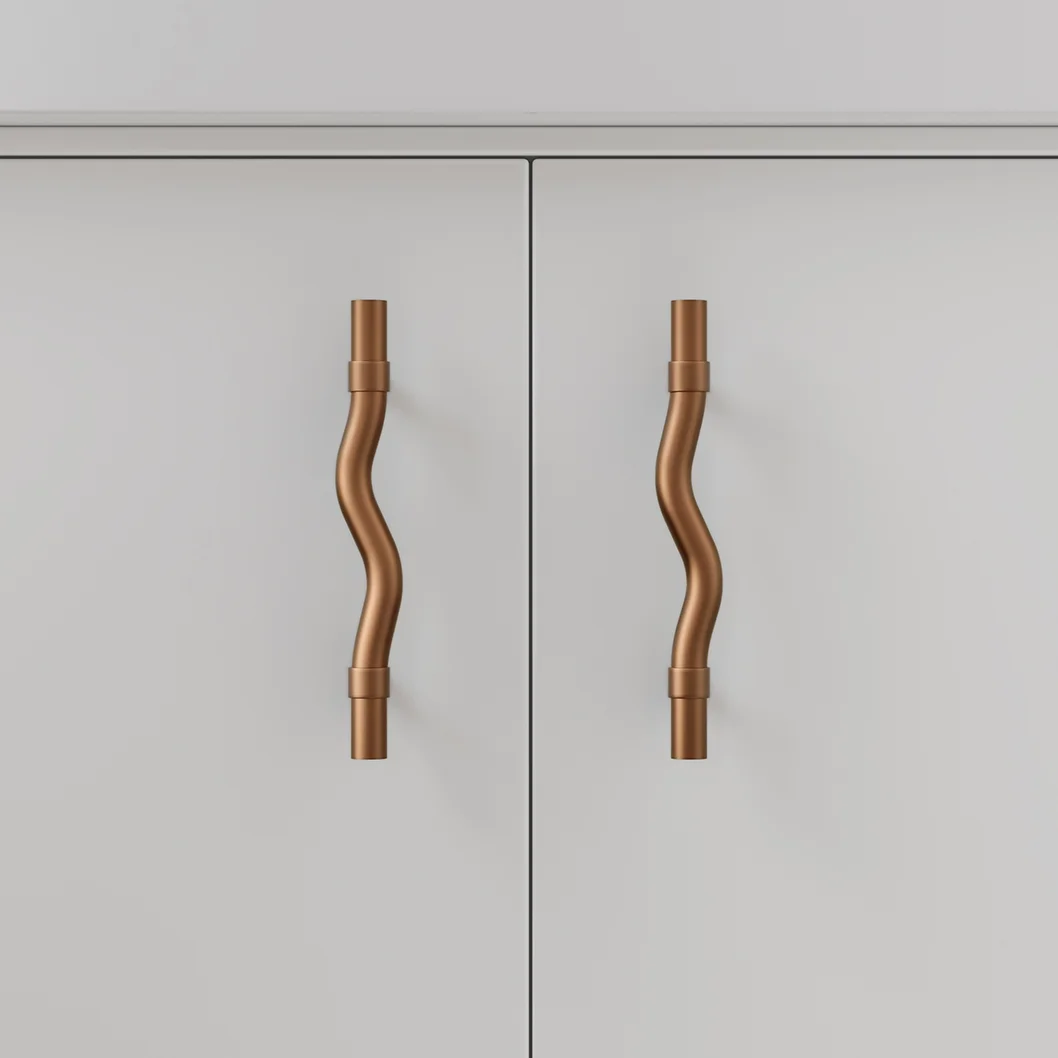

With its playful, curved design and slimline profile, the Ziggy Adjustable Cabinetry Pull is designed for flexibility, helping refresh the look of your existing cabinetry with fully adjustable fixing points.
This durable and easy-to-use solid brass pull is suitable for both retrofitting and new installations.
Features:
– Easy to clean solid brass construction.
– ABI HeatShield PVD Electro Colouring System provides a more corrosion-resistant finish while remaining environmentally friendly.
– Fully adjustable collars and fixing points.
– Easy to install.
Dimensions:
– Length: 150mm
– Width: 36mm
– Height: 22mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Ease of Installation
| SKU | 17115 |
| Weight | 0.175kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Copper - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Dimensions | Length: 150mm Width: 36mm Height: 22mm |
| What's In The Box | 1 x Handle 2 x Grub screws 2 x Collars 2 x Fixing screws (Snap-off’s) |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Kingsley Adjustable Cabinetry Pull 150mm - Brushed Nickel | 16355 | 10 | 1 | - | 1 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Ziggy Adjustable Cabinetry Pull 150mm - Specification |  |
Bim Files
| View Library |  |
Product FAQs
How does the Ziggy Adjustable Cabinetry Pull function?
The collars are adjustable and allow the fixing points to be moved along the handle, so we recommend anywhere between 60 and 120mm spacing. However, no less than 50mm can be achieved.
Can the Ziggy Adjustable Cabinetry Pull 150mm work with my existing fixing holes even though they are outside the recommended range of 60 – 120mm?
Yes, the 150mm Pull can work with any distance up to 140mm; however, no less than 50mm can be achieved.
What are the two holes in the handle for?
These are guide markings that indicate the recommended spacing.
If my carpenter would like to purchase his own fixing bolts, what size would be suitable?
We recommend using M4 x 0.7 pitch fixing bolts.
